AB Profile Tool

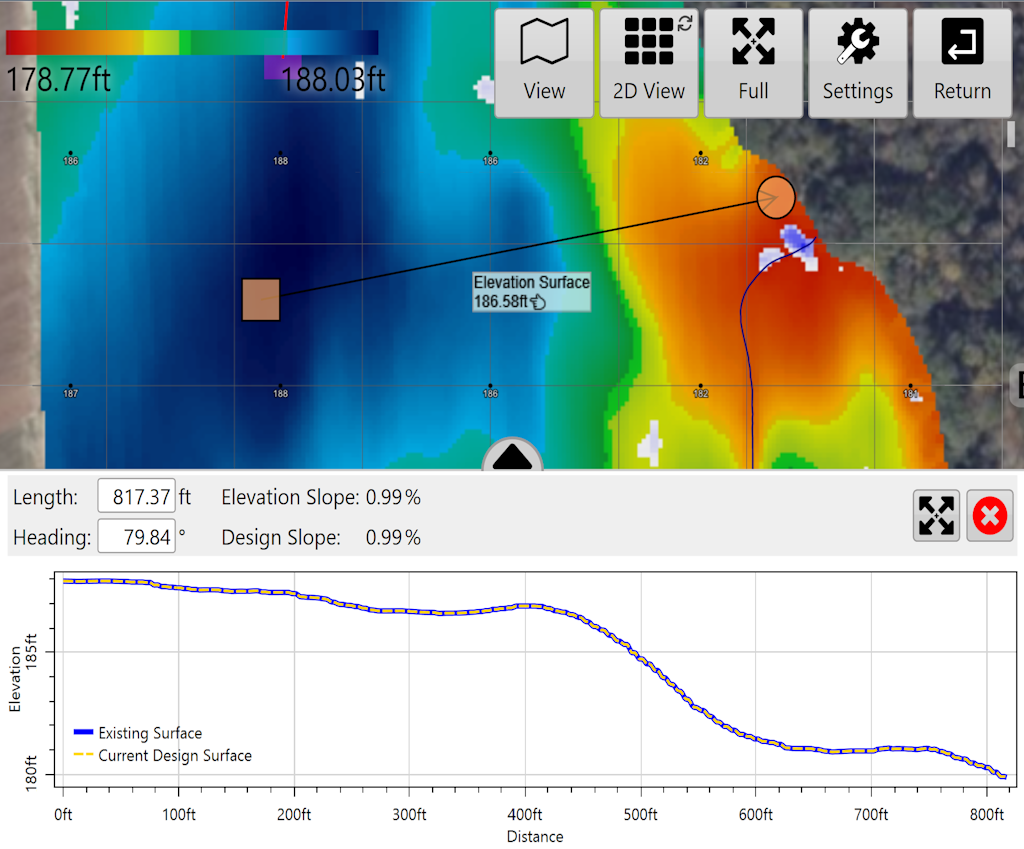

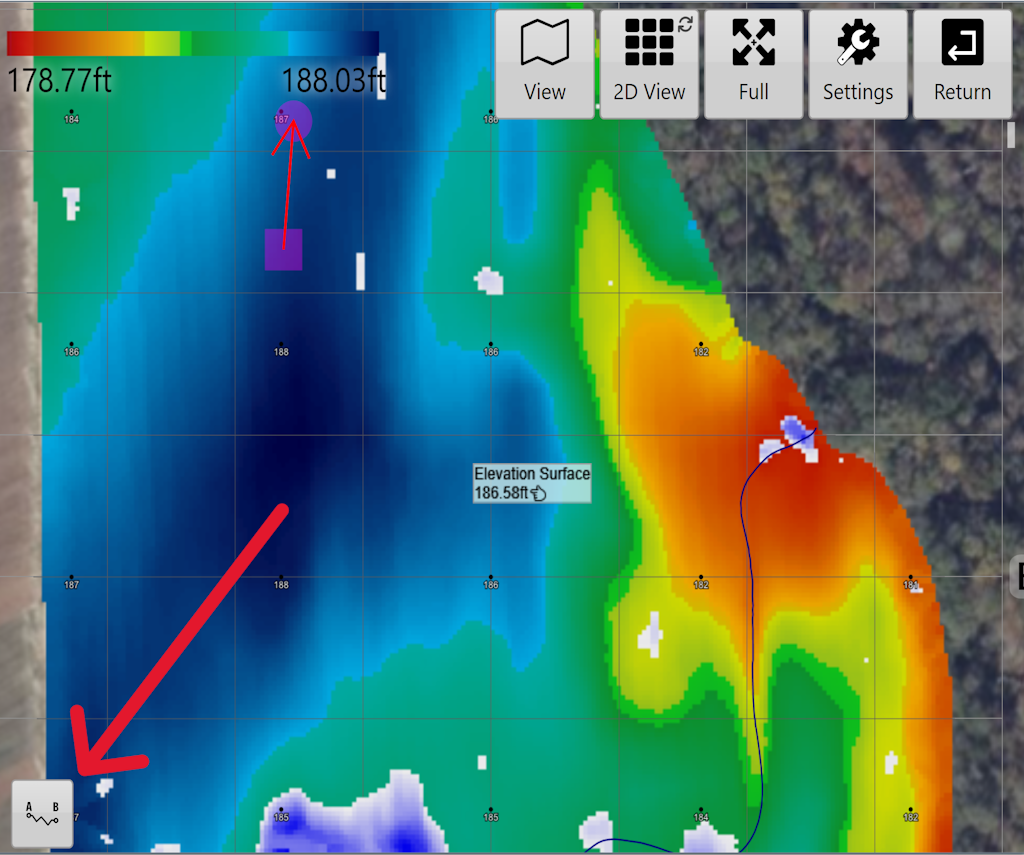

In the Design step of T3RRA Cutta Desktop, use the AB Profile Tool to draw an AB line anywhere on the surface and view the side profile of the elevation between its two nodes. Open the tool with the icon shown above, located in the bottom left corner of the map. The square node is the anchor and point A; it represents the left-hand side of the graph. Move the round node to extend the line and set point B, which represents the far right of the graph. Use this profile to visualise the slope anywhere on the surface.



Watch the AB Profile Tool tutorial.
