Offset Design

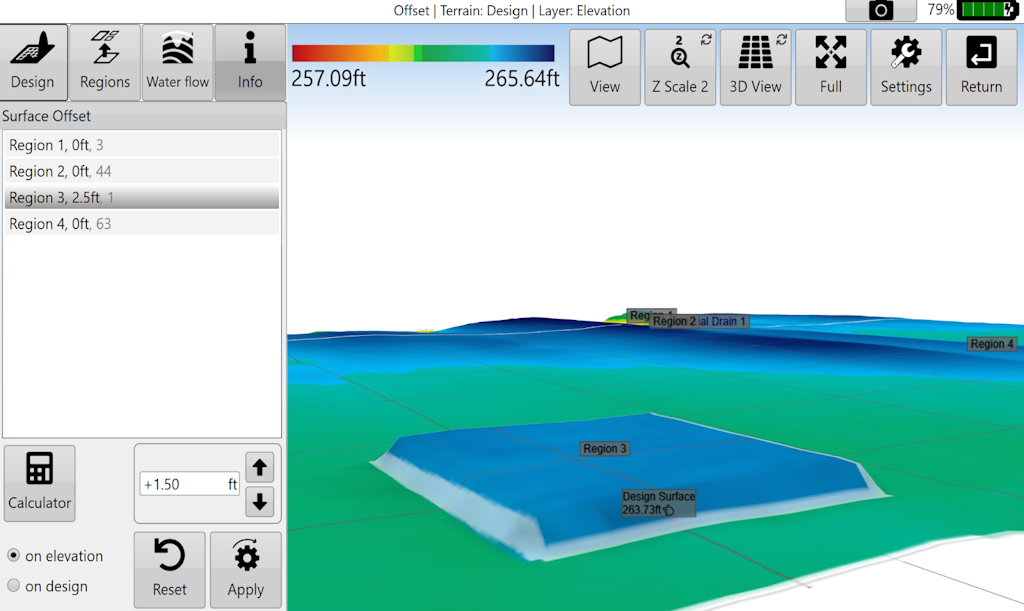

Select Offset to raise or lower the surface height of a field or region.


Offset can help with:

  • Importing and exporting dirt

  • Addition or removal of topsoil

  • Raising pads



Choose either of these ways to set the offset amount:

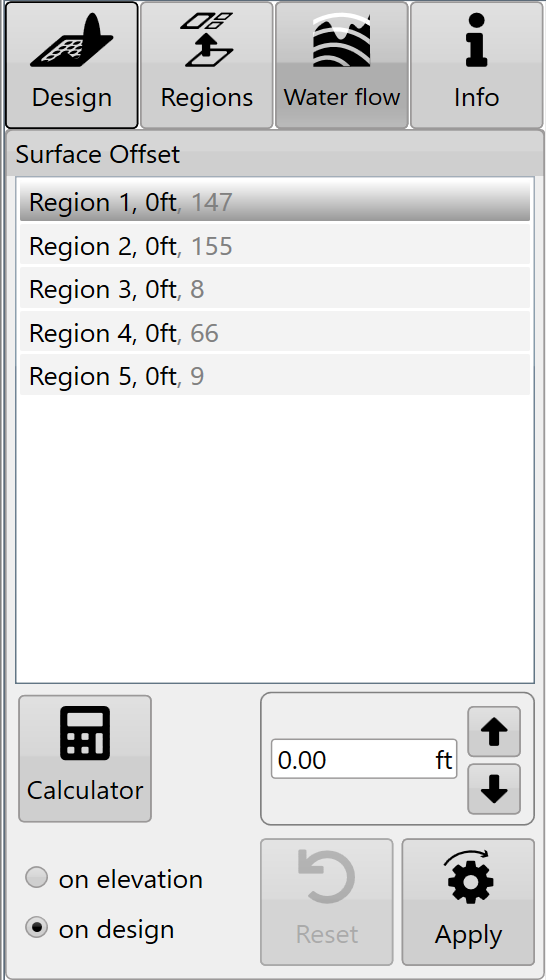

  • Enter the desired offset amount manually, or adjust it in set increments with the up and down arrows.

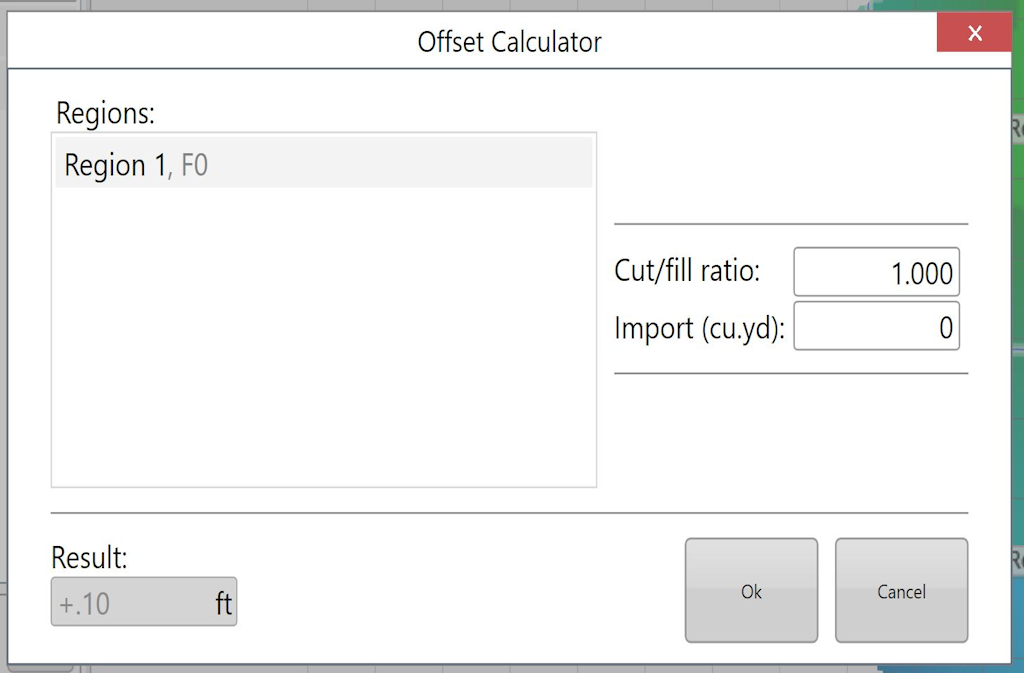

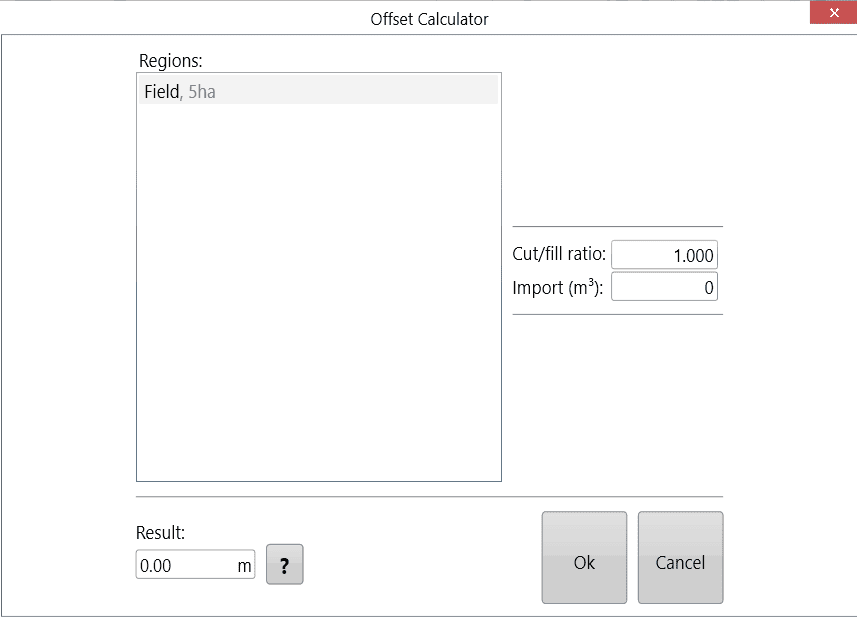

  • Use the calculator to help set the offset amount when offsetting the surface by a certain volume of imported or exported dirt.

    • Formular
      Left over volume = (Cut/Fill ratio * Volumn of cut) + Volume of fill.
      Result = (Import + Left over volume) / Selected area


Negative import values are treated as exports.

After entering the parameters, press Apply, shown as the offset design icon.

When you are happy with the design, follow the steps in the completing your design section.
