Breach Depressions

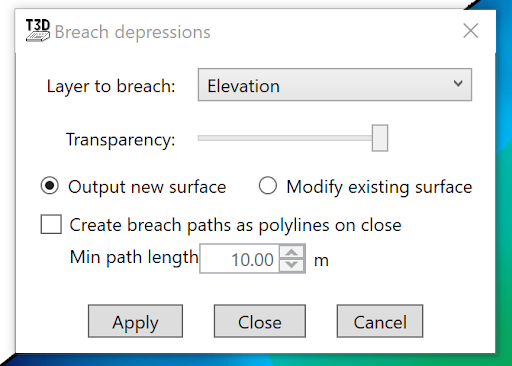

IcUoeqrzflqxh-nbdgq7as58btbdzhq4n-gcg-png.pngPOchlzznimvf8f-odlji1-ap8iqrborl-yzgw-png.png‘Breach Depressions’ allows you to break through a depression and allow water to flow out.

  • ’Layer to breach’ selects which surface layer the breaching should be applied to.
  • ‘Transparency’  of the design can be altered using the slider.
  • ‘Output new surface’ will create a new design layer.
  • ‘Modify existing surface’ will make breaching changes to the selected surface.
  • ‘Create breach paths as polylines on close’ by selecting this option polylines will be generated according to the ‘Min path length’.
