7. Blade and Tractor Indicators

When you are implementing a design, each implement will appear as a triangle pointing towards your current heading much like it did in surveying. The tractor is not displayed. The triangle indicators display GPS statuses with color changes. The inner triangle of the indicator shows the current VDOP status, while the outer edge shows the Fix Quality status. The inner VDOP status triangle changes color:

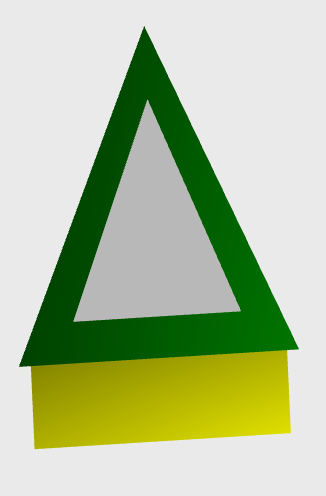

  • Grey - VDOP reading of 0

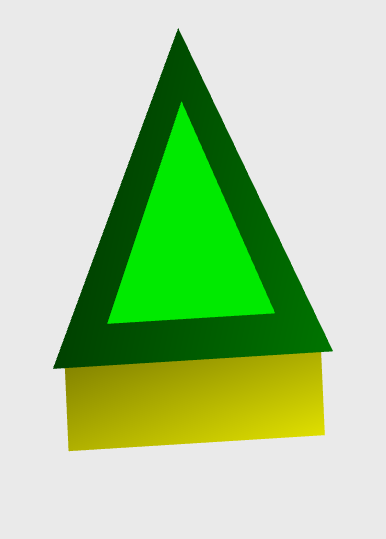

  • Green - VDOP reading between 0 and 1.5

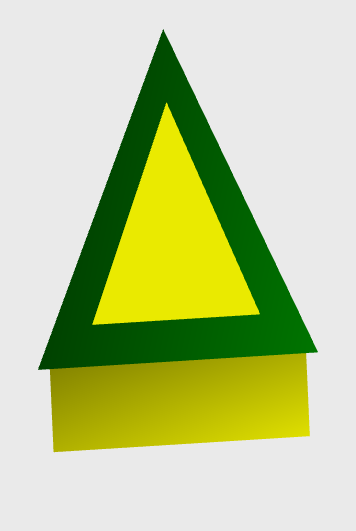

  • Yellow - VDOP reading between 1.5 and 2

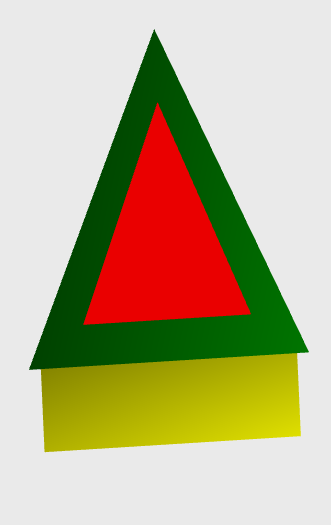

  • Red - VDOP reading is higher than 2

These readings are independent from the VDOP threshold set in the GPS info screen.

The outside edge of the triangle indicator shows the status of Fix Quality (normally only applicable to Plane and Survey).

In T3RRA Plane the Fix Quality may change depending on what is available. Depending on the type of fix quality the outside triangle will change to one of four colors:

  • Red - No fix is being made. (T3RRA Cutta and Ditch will only display this if something is wrong.)
  • Green - Fixed RTK (T3RRA Cutta and Ditch should only display this.)
  • Yellow - Float RTK
  • Orange - Differential GPS


Behind the triangle is a “blade bar” that shows the location of the blade. The width of this bar corresponds to the width of the cutting edge as entered in the ‘Settings’ window. The exact position of the GPS is at the center of the rear edge of the triangle (or the center of the front edge of the blade bar).

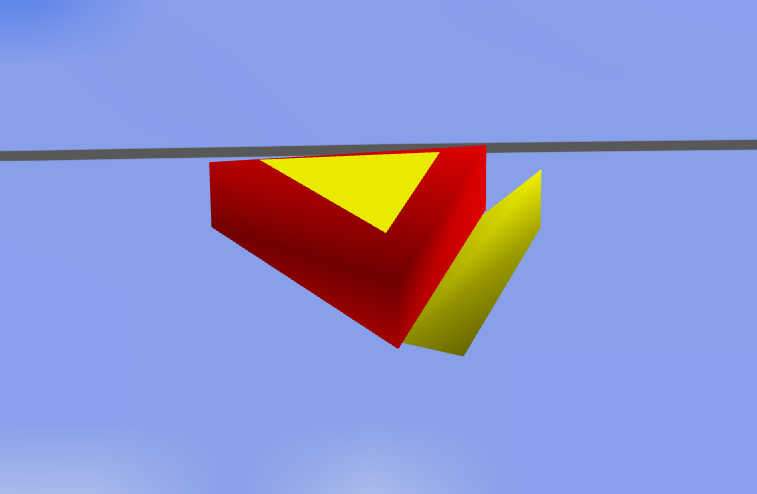

In 3D the T3RRA software will show the GPS position of the blade as the center of the front edge of the blade bar.
