12V Switched Power

A switched 12V power supply is required for the COMMAND system.

The COMMAND harnessing system has been designed to provide flexibility in provisioning 12V switched power. The following options are available to the installer.

Convenience Socket

Using an available convenience socket in cab and the T3H-PWR-2 Power Adaptor (DT06-2S & Convenience Plug).





A custom connection in-cab or externally

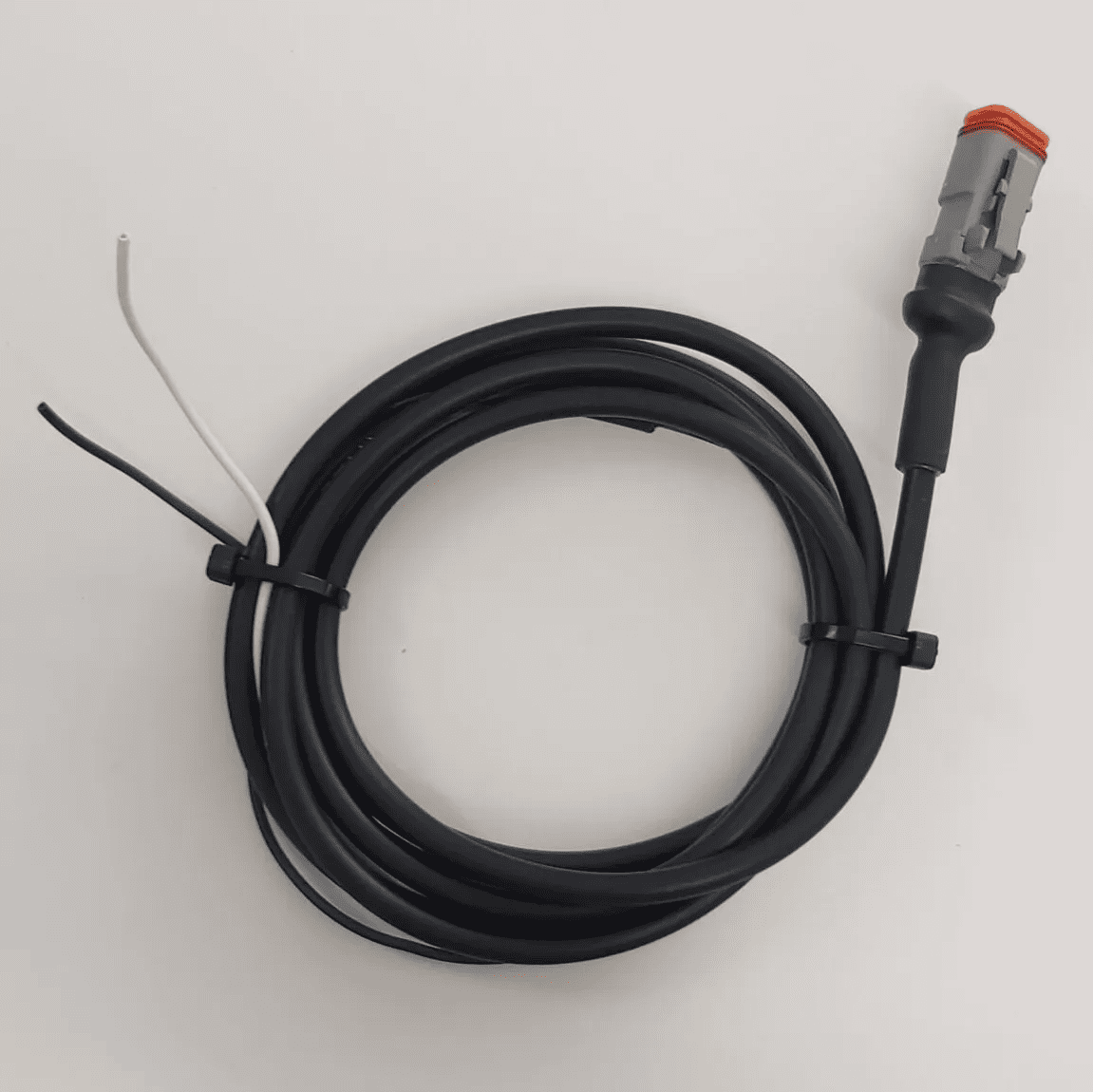

A custom connection to switched 12V power can be made using the T3H-PWR-1 Power Adaptor (DT06-2S & Loose Wire Ends).

The installing technician must provide the appropriate termination for the application.




This power must be fuse protected (10 amps).




Using the John Deere Constant Power Harness (BPF10404)

Connection to the PBF10404 can be made using the T3H-C005 (Connector C6)

Connection can be made directly into the T3H-C002 EXT branch (Connector C6) if the T3H-C005 is not required by using the T3H-F003 COMMAND Inline Fuse Adapter
