7.3 | Modern Case IH / New Holland / Trimble

Relevant Receiver Models

This section is aimed at connecting Novatel-based Case/NH/Trimble receivers with a 12-pin Deutsch DTM connection. The receiver can be connected to John Deere implement harnessing using the T3H-G002 adapter harness.

  • Case IH - Vector Pro
  • New Holland - PLM Cygnus
  • Trimble - AG-372, AG-392, NAV-900
  • Steyr - S-Guide


Parts Required

  • BPF11284 - Front Extension Harness (10m)
  • PF81137 - Implement Pigtail Terminator Wiring Harness
  • T3H-G002 - COMMAND Impl Adapter - NAV-900
  • T3H-S001 - COMMAND Impl Adapter – Stub Junction
  • Optional - T3H-G001 / T3H-G007 - COMMAND NMEA Extension Harness
    • Only required if using NMEA 0183 Serial for GNSS data.

Connection Process

  • Connect the John Deere Front Extension Harness to the IBBC and route it along the hosing/implement making sure to leave some slack wherever the hitch might flex but also paying close attention to any objects that could get caught on the harnessing.

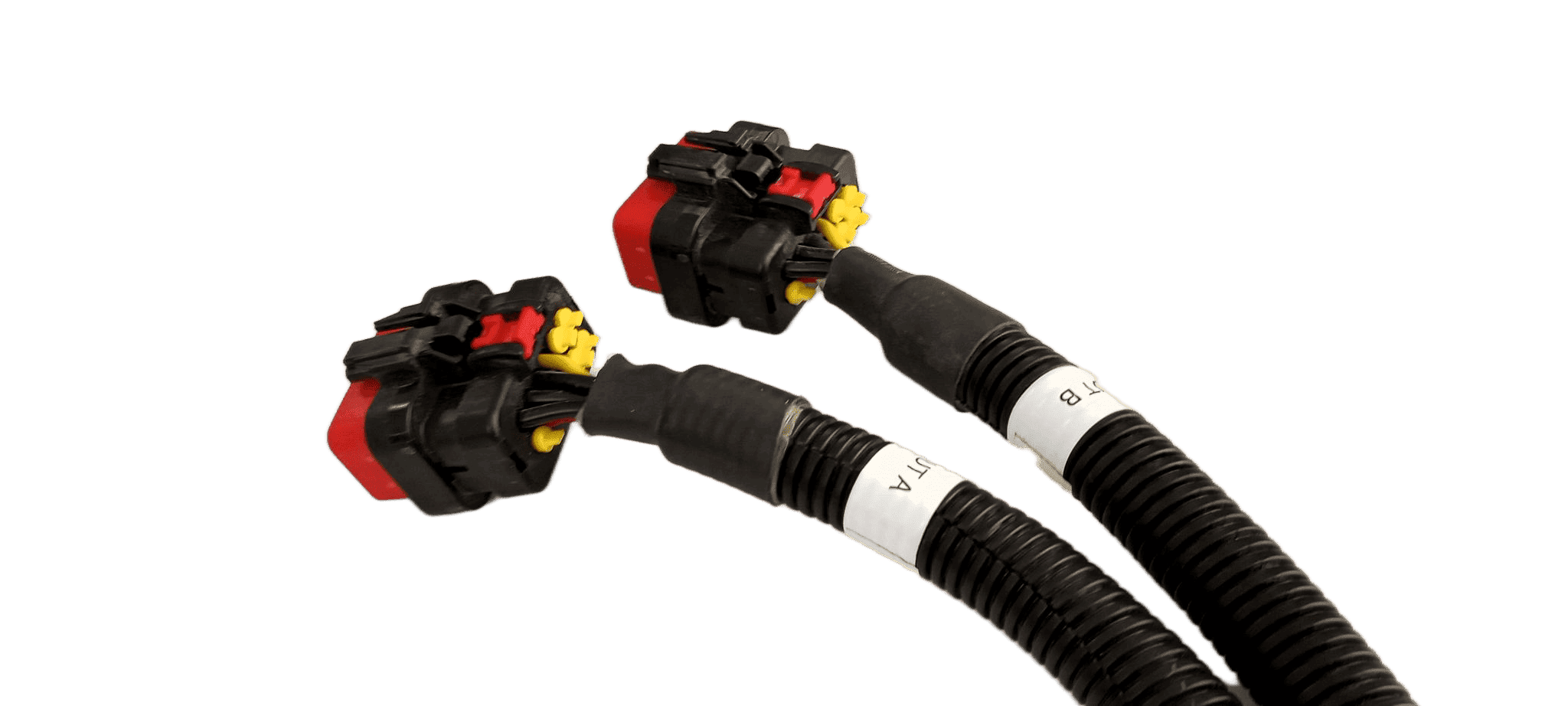

  • Connect the T3H-S001 adapter to the Front Extension Harness.

image.pngunnamed.pngAGV_vUfb18F8k_oebTBPqwfo9XiNBZNwKnM3oAVQCWqCnu81_ej-90MsO88UGKN3PqpReGufqT-IkPoI1yc2PhvecRKLpNyTiBilDY77gJACZvIxS1F6s2OWMRFvOABjb9rzPqRAgXX6yw=s2048?key=pKn9UTVcy7kVo7f76IQZkQ

  • Connect the Implement Pigtail Terminator to the T3H-S001 adapter and secure the terminator to the implement receiver wiring harness.


  • Connect the T3H-G002 adapter to the T3H-S001 adapter.


  • Connect the T3H-G002 adapter to the appropriate GNSS receiver port.



  • If using NMEA 0183 Serial, also connect the NMEA extension harness to the T3H-G002, then connect the other end to the T3H-C002 ECU breakout harness.
  • Check that the receiver powers up correctly and that data is being received by COMMAND.
