ECU Installation
ECU Connections Overview
Option 1: In-cab
Mounting in the cab of the tractor is the preferred option, as it best protects the ECU and harnessing from the elements. Mounting the ECU in-cab is best suited to tractors with paneling, compartments or normally covered cab walls with enough room to mount the ECU.

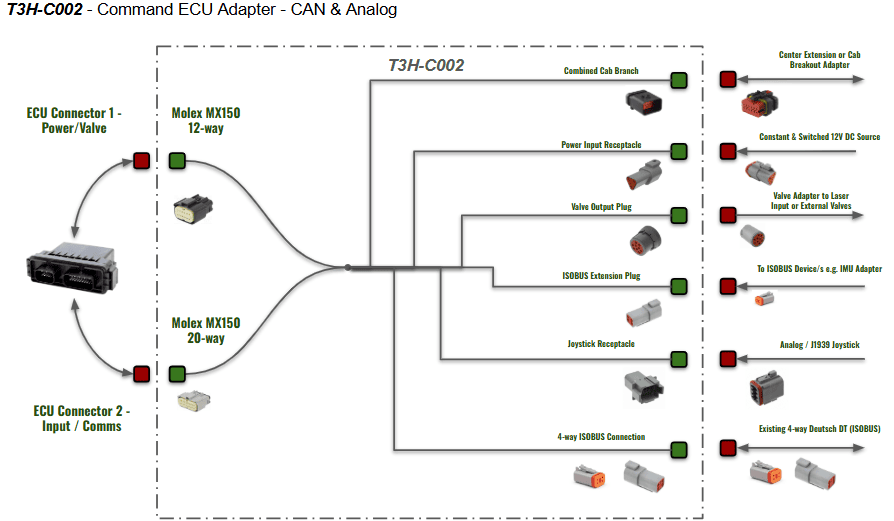

Being mounted in cab will provide access to the following for the T3H-C002 ECU breakout harness:
- Power via convenience plug or power strip
- Arm/Engage Switch
- Tablet
- 4-way ISOBUS connection from Greenstar ISO harness
- Diagnostic ports for tractor CAN access
- Joystick
- Valve output connections to JD legacy inputs or Case EHR inputs
Cabling will need to be run outside of the cab if:
- Proportional solenoid or Danfoss PVE valve cabling must be run out to an external valve block
Option 2: Rear-panel
In situations where the cab doesn't have enough suitable space for mounting the ECU and neatening the harnessing, the ECU can be mounted at the back of the tractor
Option 3: Rear ISOBUS
Recommended in these situations
